No.522 コーナーパッド試験片の落下衝撃エネルギー吸収試験解析

緩衝材としてEPS20倍のコーナーパッド試験片の上に,輸送対象となる製品を模擬した弾性体金属ブロックを配置して,高さ30cmから自由落下した場合の,落下衝撃エネルギーの吸収試験をシミュレーションした例を示します。
参考文献: 榎本 殖安, 須藤 敏之, 津田 高治, 吉田 孝明:「商品開発における衝撃シミュレーション技術の活用」富士ゼロックス テクニカルレポート No.18 2008

The corner block specimens are cushioning material and made of expanded polystyrene. They were modeled using a foam material model. A metal block corresponding to the product to be transported is placed on top of them. The following is an example of a simulated drop impact energy absorption test when the cushioning material and the metal block are dropped freely from a height of 30 cm.

Keywords: Foamed material, Tetrahedron elements

Tools: LS-PrePost ver.4.8, LS-DYNA MPP Win64 R11.2.2

なお,本事例はサンプルであることをご了承下さい。

April 30, 2022 create a new entry

 Drop impact energy absorbing test simulation with foamed material parts

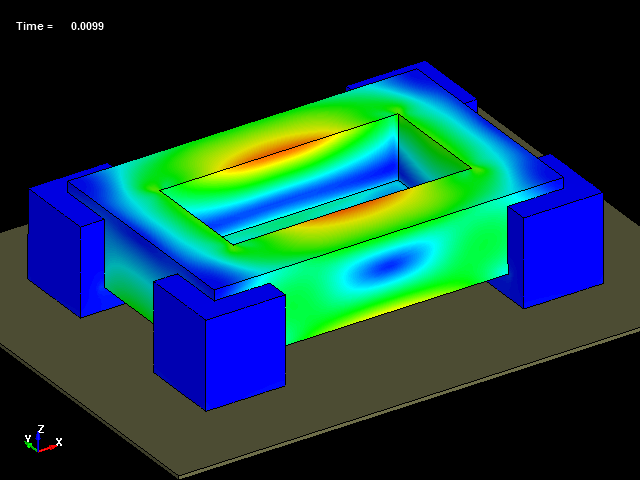

Fig.1 Drop impact energy absorbing test simulation with foamed material parts
